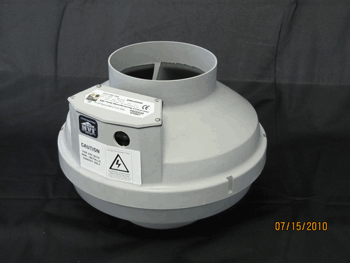

AMG Legend radon fan is made with an exceptionally reliable and quiet EBM motor and backed by a no hassle 5-year full replacement warranty.
The casing of the Legend is made from a dove-gray dough molded glass fiber, non-yellowing and UV resistant.
The Legend is a suitable replacement for the Fantech FR160, HP220 or RadonAway RP265, see performance figures
The Legend is a Medium wattage fan suitable for a very large foot-print with a porous or semi-porous sub-slab. Maximum pressure 2.6" WC and maximum flow 353CFM @ 0" WC
Fans are attached to PVC pipe using 2 flexible couplings.
For 4" PVC pipe use Fernco coupling 1006-44 or kit 1006-44-K
Performance figures:
CFM at STATIC PRESSURE in. w.g. | |||||||||||||
Model | Volts | Watts | 0" | 0.5" | 0.75" | 1.0" | 1.25" | 1.5" | 1.75" | 2.0" | 2.2" | 2.4" | 2.6" |
AMG Legend | 115V 60Hz | 150 | 353 | 280 | 245 | 210 | 180 | 149 | 110 | 70 | 43 | 19 | 0 |
Weight: 8 lb 3oz Fan Speed: 2700 rpm |
